Description

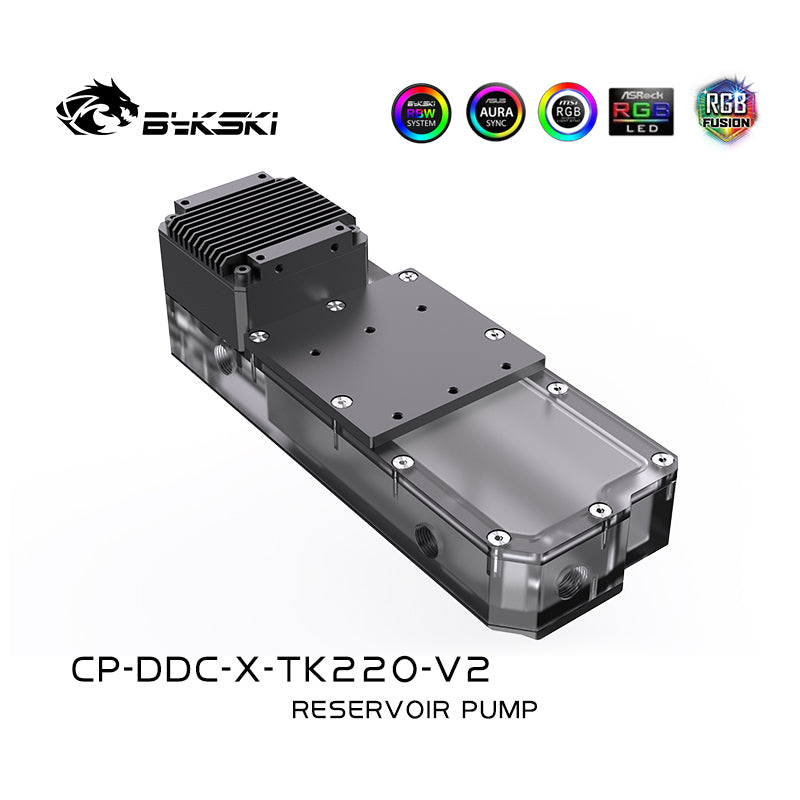

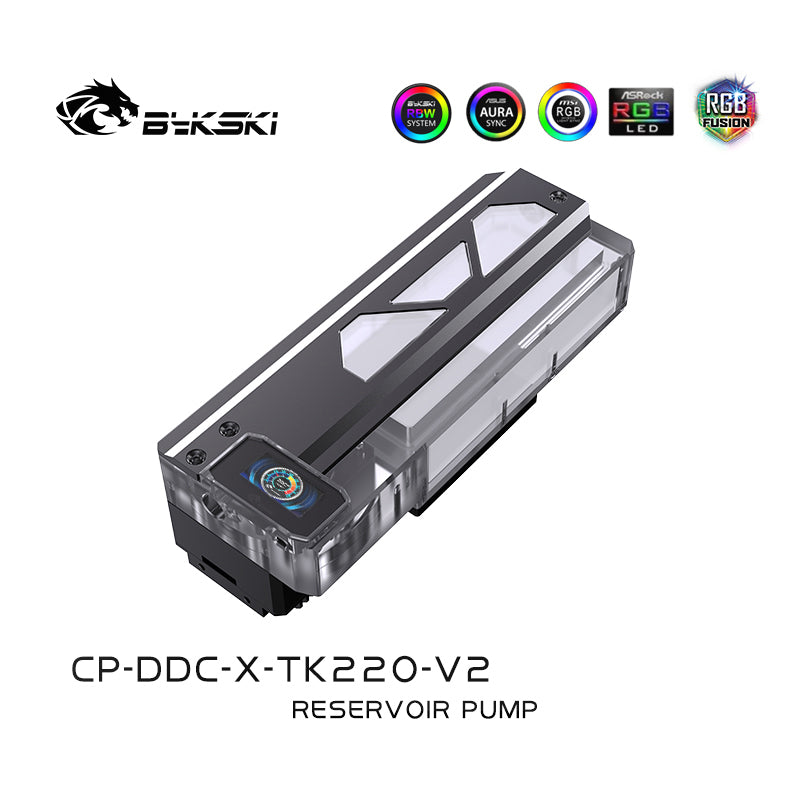

This latest version of the Bykski DDC Pump Station Kit delivers power, versatility, and a real-time temperature display. The transparent PMMA body highlights the fluid you use. Aluminum cover plates and pump armor give the reservoir a distinctive look and design. Located at the bottom right of the station is a temperature gauge that provides real-time temperature readings. The included powerful DDC pump powers the station, ensuring excellent flow throughout your loop. Multiple mounting options are available, including a 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.

Features

  • Low Vibration / Quiet Operation

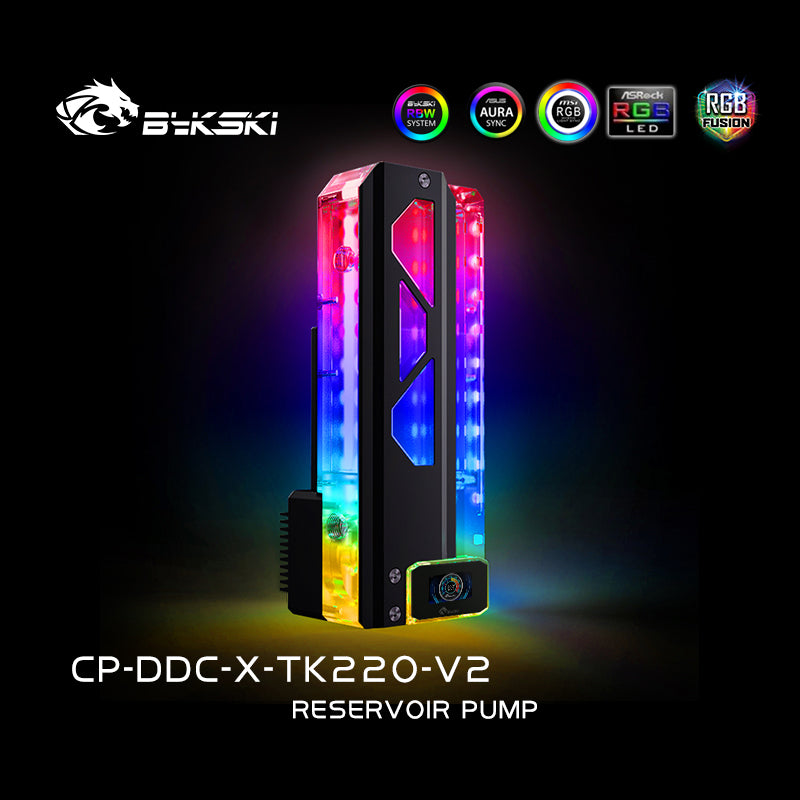

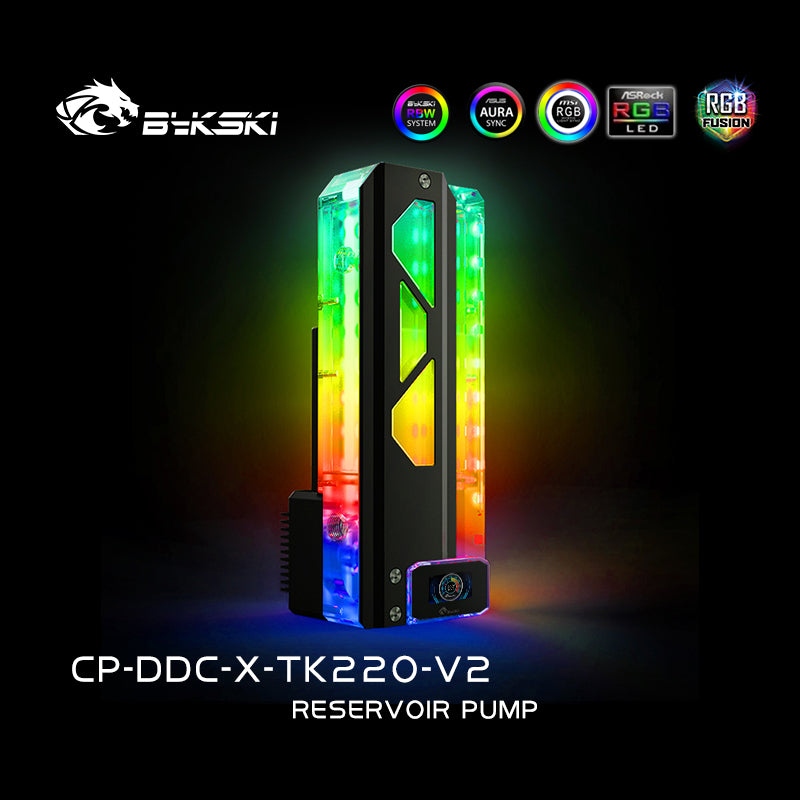

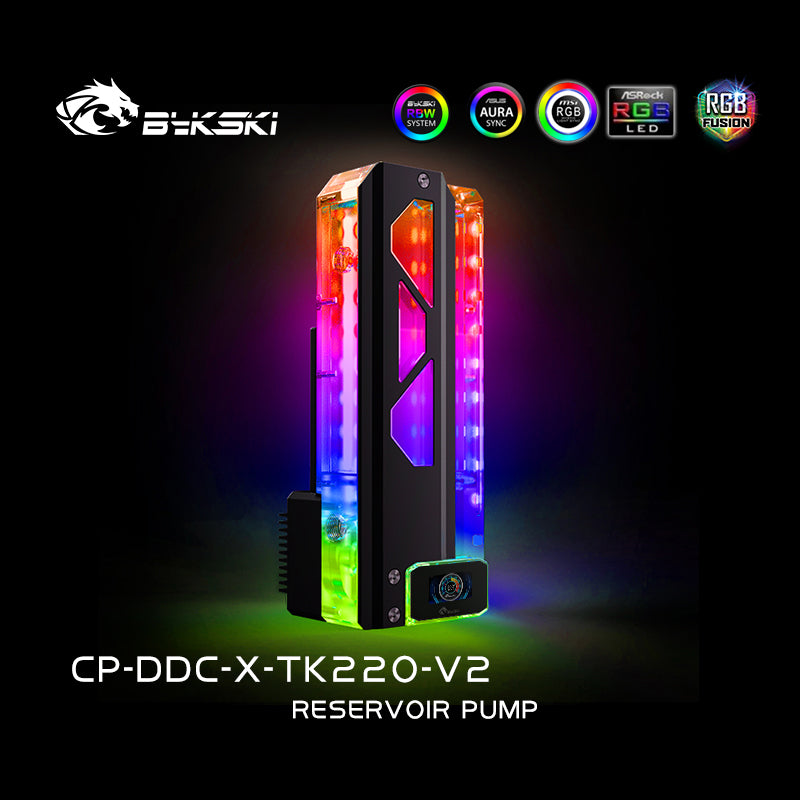

  • Ultra Bright 5V A-RGB Integrated LEDs
  • Digital Temperature Readout

Specifications

  • Material: Acrylic / Black Anodized Aluminum (not in contact with coolant)

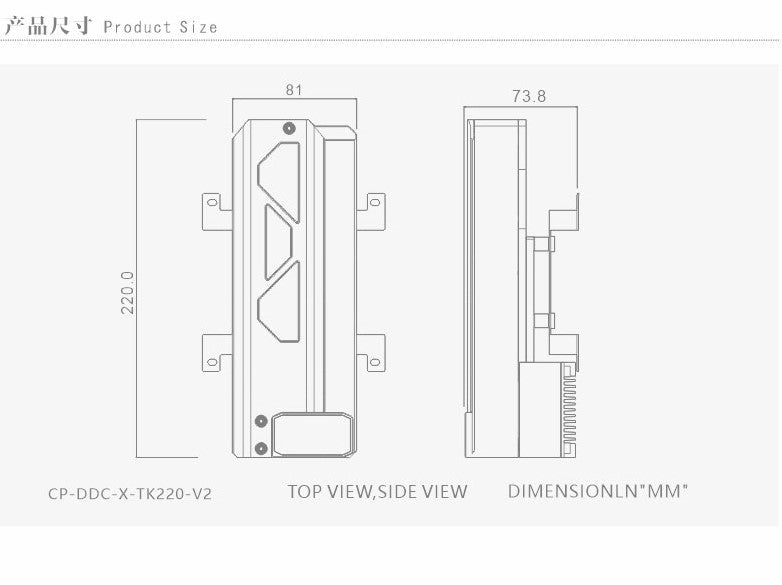

  • Dimensions: 220mm(H) x 81mm(W) x 73.8mm(D)

  • Thread: G 1/4in.

  • Inlets: 3

  • Outlets: 1

  • Pump Specifications: CP-PMD3COV-X with heatsink

    Max RPM: 5000
    Temperature: 45°C @ 4000RPM
    Power: 12V (TDP15W)
    Power Connector: 4-Pin PWM
    Voltage Consumption: DC12V, TDP 15W
    Voltage Range: 10-15V
    Flow Rate: 600L/H
    Output Head: 6 Meters
    Connector: 4-Pin Molex and 4-Pin Fan (Tach+PWM only)
    MTBF: 50,000 Hours

Compatibility

  • Mount Type: 120mm Mount Bracket or Customised

Included Parts

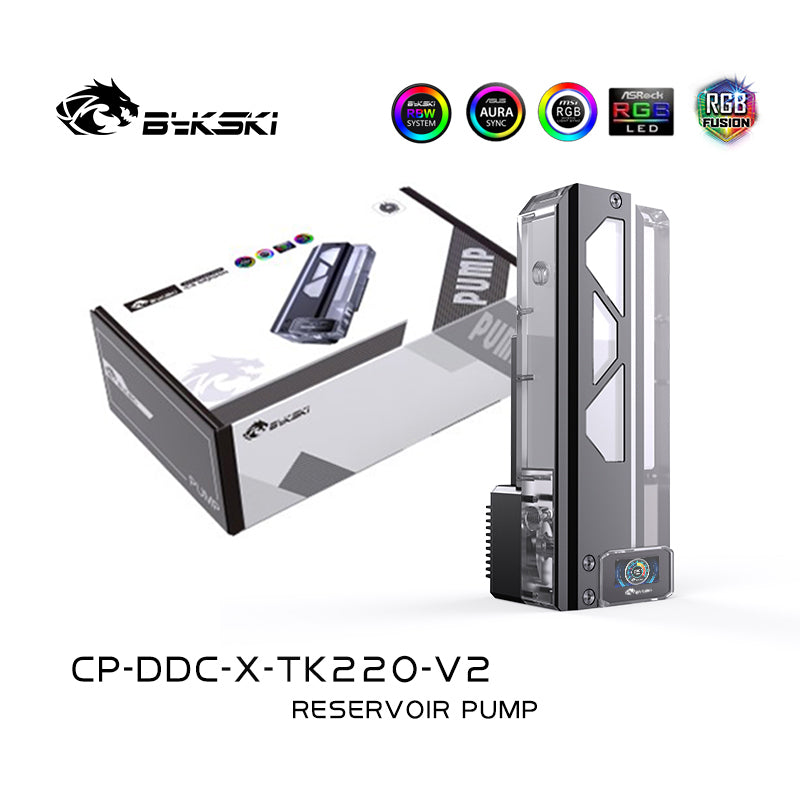

  • 1x 220mm Reservoir Station
  • 1x DDC Pump with Heatsink (installed)
  • 1x B-BKT-105 Bracket
  • 2x Elbow Bracket






Description

This latest version of the Bykski DDC Pump Station Kit delivers power, versatility, and a real-time temperature display. The transparent PMMA body highlights the fluid you use. Aluminum cover plates and pump armor give the reservoir a distinctive look and design. Located at the bottom right of the station is a temperature gauge that provides real-time temperature readings. The included powerful DDC pump powers the station, ensuring excellent flow throughout your loop. Multiple mounting options are available, including a 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.

Features

  • Low Vibration / Quiet Operation
  • Ultra Bright 5V A-RGB Integrated LEDs
  • Digital Temperature Readout

Specifications

  • Material: Acrylic / Black Anodized Aluminum (not in contact with coolant)

  • Dimensions: 220mm(H) x 81mm(W) x 73.8mm(D)

  • Thread: G 1/4in.

  • Inlets: 3

  • Outlets: 1

  • Pump Specifications: CP-PMD3COV-X with heatsink

    Max RPM: 5000
    Temperature: 45°C @ 4000RPM
    Power: 12V (TDP15W)
    Power Connector: 4-Pin PWM
    Voltage Consumption: DC12V, TDP 15W
    Voltage Range: 10-15V
    Flow Rate: 600L/H
    Output Head: 6 Meters
    Connector: 4-Pin Molex and 4-Pin Fan (Tach+PWM only)
    MTBF: 50,000 Hours

Compatibility

  • Mount Type: 120mm Mount Bracket or Customised

Included Parts

  • 1x 220mm Reservoir Station
  • 1x DDC Pump with Heatsink (installed)
  • 1x B-BKT-105 Bracket
  • 2x Elbow Bracket
